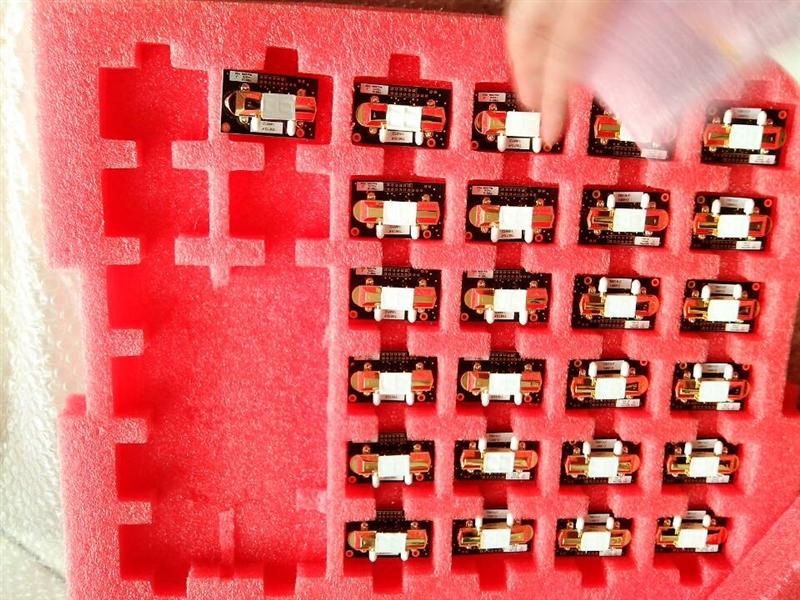

美国GE二氧化碳传感器模块T6615 CO2 Module

Compact CO2 Module Designed to Integrate Into Existing Controls and Equipment

The Telaire T6615 dual-channel CO2 Module is designed to meet the volume, cost, and delivery expectations of Original Equipment Manufacturers (OEMs). The T6615 is a dual channel sensor. The two channels can be described as a CO2 channel that measures gas concentration and a reference channel that measures the sensor signal intensity.

美国GE二氧化碳传感器模块特点

Features

An affordable gas sensing solution for OEMs.

A reliable sensor design based on 15 years of engineering and manufacturing expertise.

Flexible CO2 sensor platform designed to interact with other microprocessor devices.

Dual-channel optical system and three-point calibration process for enhanced stability, accuracy and reliability.

Designed for applications where ABC Logic cannot be used.

Applications

When used in a building monitoring system, the T6615 dual sensor module allows building owners and managers to quickly,easily and efficiently moniotr the building air quality to stay within regulation.

Specifications

Method Method Dual-channel Non Dispersive Infrared (NDIR), gold plated optics, diffusion or flow through sampling.

Measurement Range 0 to 2000 ppm

0 to 5000 ppm

0 to 10,000 ppm

0 to 50,000 ppm

Dimensions 2.25 in X 1.365 in X 0.60 in

(57.15 mm X 34.67 mm X 15.24 mm)

Accuracy* 75 ppm or 10% of reading (whichever is greater)

Temperature Dependence 0.2% FS per °C

Stability over Life of Sensor (10 Years) < 5% of FS or <10% reading annual

Pressure Dependence 0.135% of reading per mm Hg

Response Time < 2 minutes for 90% step change typical

Warm Up Time < 2 minutes (operational)

10 minutes (maximum accuracy)

Operating Conditions 32°F to 122°F (0°C to 50°C)

0 to 95% RH, non condensing

Storage Conditions -40°F to 158°F (-40°C to 60°C)

(Non Condensating)
